PRODUCT Your current location：Home > PRODUCT > Pneumatic chuck > Fixed type > Square type

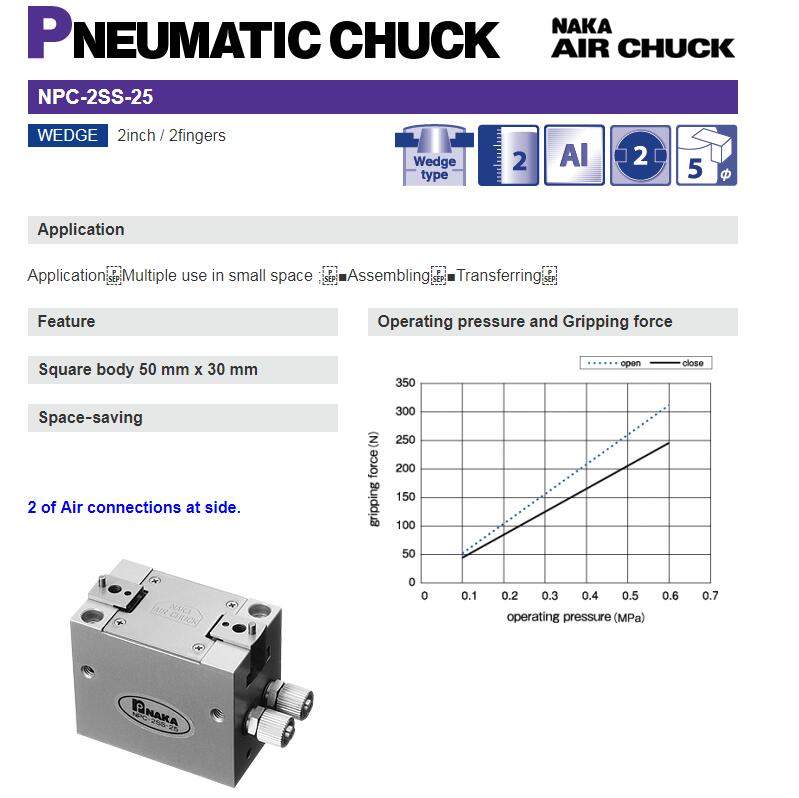

NPC-2SS-25

Click：4420    Date：2019/7/1    Return
  • Details


    • Specification


      Description

      		NPC-2SS-

      Type

      		25

      Repeatability (mm)

      		0.01

      Number of jaws

      		2

      Stroke per jaw (φmm)

      		5

      Fixing hole circle

      		40×22

      Top fixing Bolt

      		M3×2

      Bottom fixing Bolt

      		M4×2

      Bottom  insertion dimension (mm)

      (inside diameter×depth凸.凹）

      φ24 +0.05/0×1

      Working fluid

      Compressed Air

      Pneumatic operating pressure (MPa)

      		0.15〜0.6

      Body material

      Al

      Bottom fixing bolt (g)

      220

      Permissible revolutions (min-1)

      		-

      Gripping force (calculated value) (N)

      40（at 0.1MPa）

      Dimension


      npc_2ss_25
