PRODUCT Your current location：Home > PRODUCT > Pneumatic chuck > Fixed type

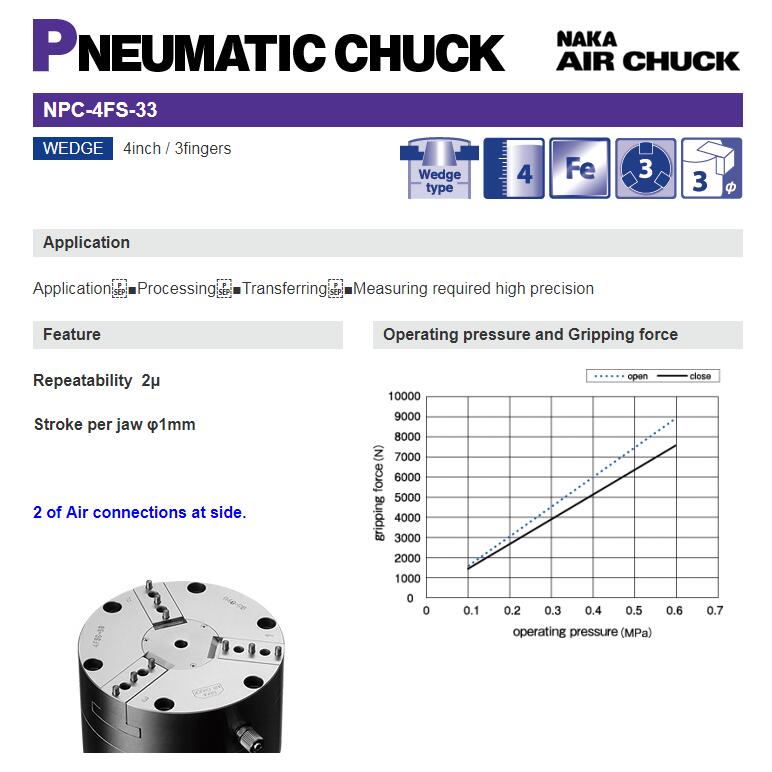

NPC-4FS-33

Click：1919    Date：2019/7/1    Return
  • Details


    • Specification

      Description

      		NPC-4FS-

      Type

      		33

      Repeatability (mm)

      		0.002

      Number of jaws

      		3

      Stroke per jaw (φmm)

      		3

      Fixing hole circle

      		P.C.D89

      Top fixing Bolt

      		M5×6

      Bottom  insertion dimension (mm)

      (inside diameter×depth凸.凹）

      		φ75H7×2

      Working fluid

      Compressed Air

      Pneumatic operating pressure (MPa)

      		0.15〜0.6

      Body material

      		Fe

      Weight(g)

      2880

      Permissible revolutions (min-1)

      		-

      Gripping force (calculated value) (N)

      1267（at 0.1MPa）

      Dimension

      npc_4fs_33
