PRODUCT Your current location：Home > PRODUCT > Pneumatic chuck > Fixed type

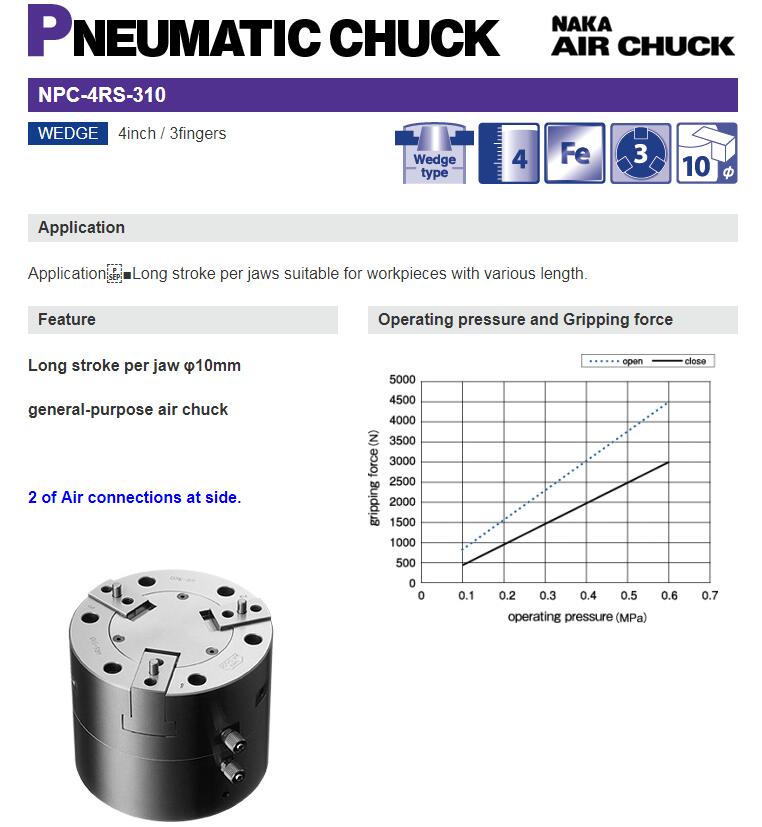

NPC-4RS-310

Click：2207    Date：2019/7/1    Return
  • Details


    • Specification

      Description

      		NPC-4RS-

      Type

      		310

      Repeatability(mm)

      		0.005

      Number of jaws

      		3

      Stroke per jaw(φmm)

      		10

      Fixing hole circle

      		P.C.D89

      Top fixing Bolt

      		M5×6

      Bottom  insertion dimension (mm)

      (inside diameter×depth凸.凹）

      		φ75H7×2.5

      Working fluid

      Compressed Air

      Pneumatic operating pressure (MPa)

      		0.15〜0.6

      Body material

      		Fe

      Weight (g)

      4990

      Permissible revolutions (min-1)

      		-

      Gripping force (calculated value) (N)

      417（at 0.1MPa）

      Dimension

      npc_4rs_310
